Fuste is china Professional rubber hose manufactuer for 18years . provide the fuel line rubber hose SAE J30 R6 R7 for Automotive & Powersports lik

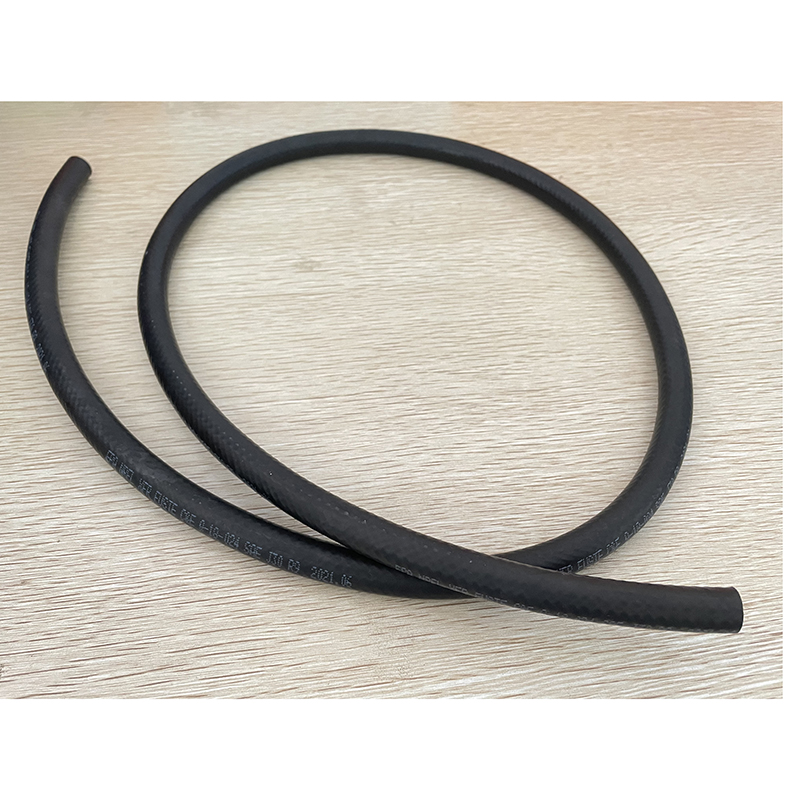

Fuste is china Professional rubber hose manufactuer for 18years . provide the fuel line rubber hose SAE J30 R9 for Automotive & Powersports like snowmobile, motorcycle, UTV/ATV, golf car, off-load vehicles,golf car and so on .
Application
Our fuel hose line mainly used for auto , truck and lawnmower fuel enginefuel systems. Fuste SAE J30R9 is CARB approved with a permeability meet CARB,<15grams/m2/day at 104°F (40°C) and certified to EPA .

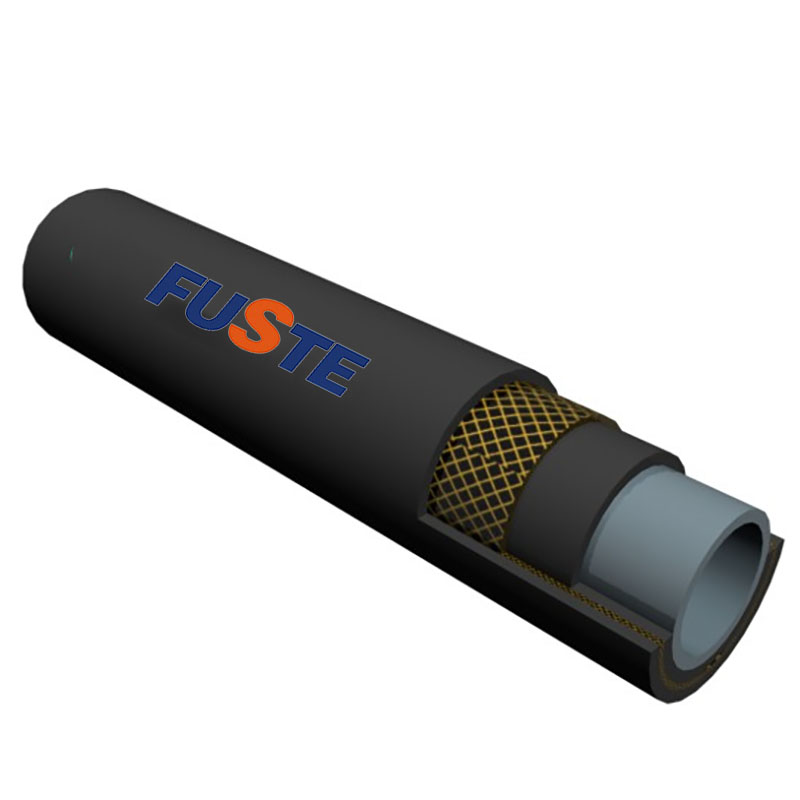

Construction
Tube: Black Fluoroelastomer
Reinforcement:aramid fiber
Cover: FKM
Length: custom as customer’s requirement
Specifications
Temperature Range: -29°F to 275°F (-34°C to 135°C). Intermittent use at 302°F (150°C)
SAE Specifications: SAE J30R9
Flammability resistance:Self extinguish at 10 secs
Ozone resistance:50pphm*48H
Aging resistance:150℃; Low temp resistance:-40℃
Fuel resistance:CE10,CE20,CM15,CM85,OXIDIZED FUEL,FUEL A/B/C/D

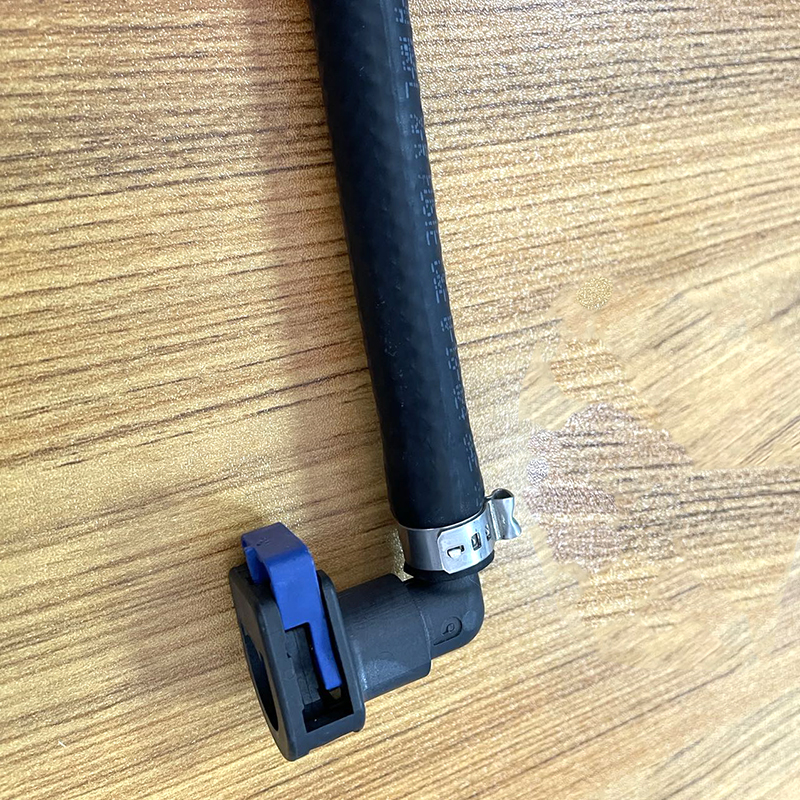

we can also provide you the quick connector as bellow pics :
Also can provie you the PU cover for protection as pic :
Part No
ID (in.)
OD (in.)
Working Pressure (psi)
Burst Pressure (psi)
Mind Bend Radius (in.)
Vacuum HG (in.)
Tolearance
6010147
1/4
0.5
max. 100
900
0.75
24
±0.4mm
6012310
5/16
0.56
max. 100
900
0.84
24
±0.4mm
6010235
3/8
0.63
max. 100
900
0.94
24
±0.4mm
6011866
0.35
0.67
max. 100
900
0.94
24
±0.4mm
6011676
0.2
0.43
max. 100
900
0.94
24
±0.4mm
Any rubber hose request , no matter water rubber hose , EPDM hose , or fuel hose ,nbr rubber hose , ECO , CSM ,FKM rubber hose , feel free to contact me .
