How to design rubber grommet

How to design rubber grommet

18 Jun 2021

How to design rubber grommet

What is grommet ?

Grommet: An eyelet placed in a hole in a sheet or panel to protect or insulate a rope or cable passed through it or to prevent the sheet or panel from being torn

Fuste are a professional Auto rubber manufacturer for 17 years , have rich experience to help customer to design different kind harness grommet .

Like these grommet

· Wheelhouse grommets

· Firewall grommets

· Dash grommets

· Wiper grommets

· Sound isolation grommets

· Front-of-dash grommets

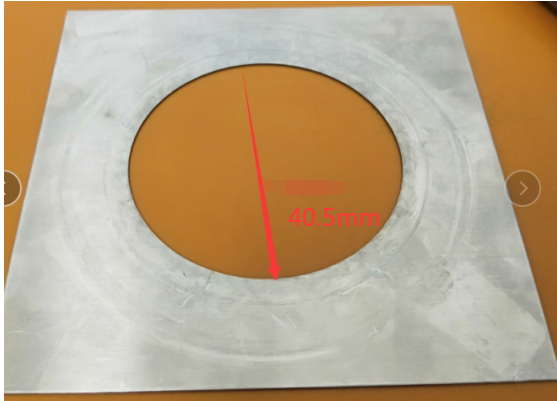

First , should confirm the location of the grommet , then confirm the size of the sheetmetal hole and thickness

Door Sealing Grommet

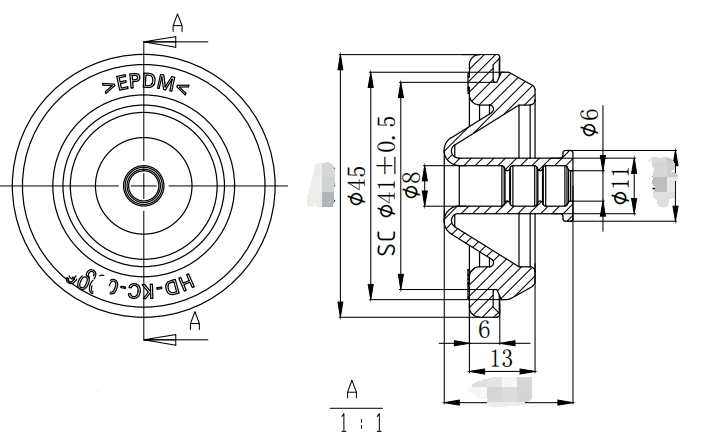

Also the sheet metal thickness determinn the structure of the grommet .

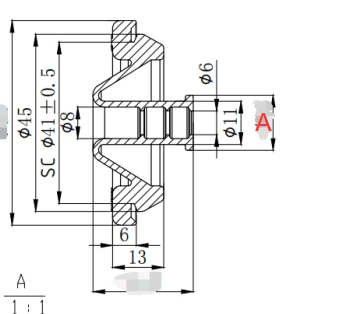

For the cable diameter , should also be about 2mm smaller than the grommeter inner diameter A position. then it will be easy to assemble


Besides the round grommet , we also can help design cable oval grommet into the Side door system to improve cable routing through the Side doors

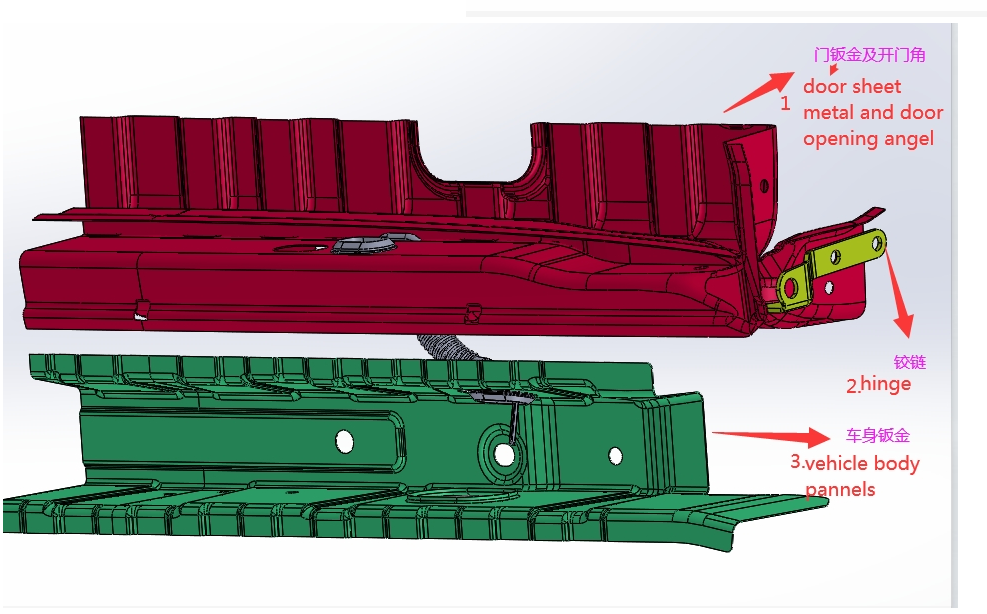

Regarding the door sealing grommet , there will be more factors to dertermin the structure . like the hinge , the door angel , and the vehicle body location .

This three part dertermin the design of the door bellow grommet structure .

If you have new custom rubber grommet project , feel free to contact us , we not only help you with the production , also can help you with the design and make the item to be reality .
